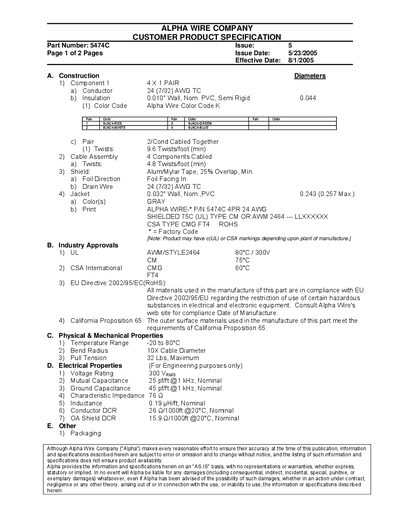

The Alpha Wire 5474C product specification provides detailed information on the wire's construction, including conductor size, insulation, shielding, and jacket color. It lists the component layout, twist rates, and packaging options.
Technical data cover temperature range, voltage rating, impedance, capacitance, inductance, and resistance values. The document also includes UL, CSA, EU RoHS, and California Proposition 65 approvals, along with legal disclaimer statements.
| Voltage Rating | 300 Vrms |
|---|---|
| Temperature Range | -20 to 80°C |
| Pull Tension | 32 Lbs, Maximum |
| Characteristic Impedance | 76 Ω |
| Inductance | 0.19 µH/ft, Nominal |
| Conductor DCR | 26 Ω/Mil/ft @20°C, Nominal |
| Mutual Capacitance | 25 pF/ft @1 kHz, Nominal |
| Ground Capacitance | 45 pF/ft @1 kHz, Nominal |
| Shield DCR | 15.9 Ω/Mil/ft @20°C, Nominal |
| Jacket Color | GRAY |
| Conductor Size | 24 (7/82) AWG TC |
The voltage rating is 300 Vrms.
It is approved by UL AWM/STYLE2464 80 °C/300 V, CSA International CMG 60 °C FT4, complies with EU RoHS, and meets California Proposition 65 requirements.
The wire is rated for temperatures from –20 °C to 80 °C.
It is offered in 100 ft, 500 ft, 1000 ft, or bulk (made‑to‑order).
