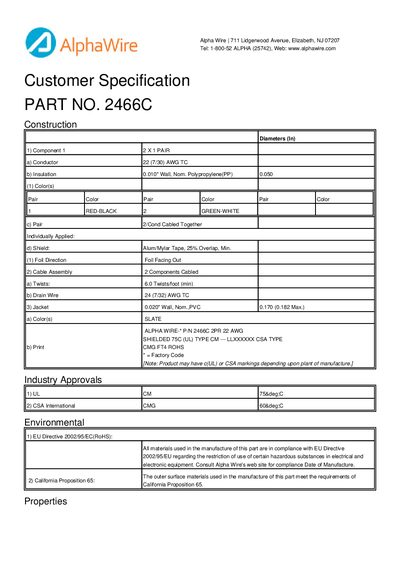

This document details the construction of Alpha Wire part number 2466C, a 2‑pair 22 AWG shielded cable with polypropylene insulation and a PVC jacket. It lists the conductor, insulation, shield, and color coding, as well as packaging options.
The sheet also includes physical, mechanical, and electrical properties such as temperature range, voltage rating, impedance, and compliance certifications (UL, CSA, RoHS, California Proposition 65).
| Bend Radius | 10× Cable Diameter |
|---|---|
| Pull Tension | 25 Lbs (Maximum) |
| Voltage Rating | 300 V |
| Characteristic Impedance | 60 Ω |
| Inductance | 0.18 H (Nominal) |
| Mutual Capacitance | 25 pF/ft @1 kHz (Nominal) |
| Ground Capacitance | 45 pF/ft @1 kHz (Nominal) |
It is rated for 300 V.
The characteristic impedance is 60 Ω.
