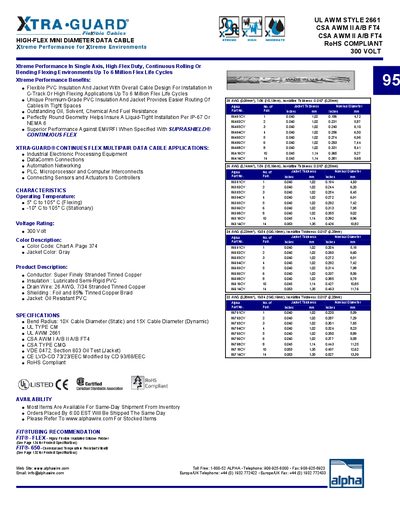

The document describes a high-flex mini diameter data cable suitable for single-axis, high-flexing environments. It has a voltage rating of 300 volts. The product features include flexible PVC insulation and jacket, easy installation in C-track or high flexing applications, excellent oil, solvent, chemical, and fuel resistance, perfectly round geometry for liquid-tight installation, superior performance against EMI/RFI, and applications in industrial electronic processing equipment, data communication connections, automation networking, and connecting sensors and actuators to controllers.
The UL AWM STYLE 2661 cable is a high‑flex, mini‑diameter data cable featuring premium PVC insulation and jacket for easy routing in tight spaces. It is designed for extreme environments, offering up to 6 million flex life cycles and excellent resistance to oil, solvents, chemicals, and fuel.
The cable meets UL, CSA, and CE standards, with a 300 V rating, operating temperatures from –10 °C to 105 °C, and a bend radius of 10× static or 15× dynamic cable diameter. Availability is listed as same‑day shipment from inventory, with orders placed by 6:00 EST shipped the same day. For ordering, see www.alphawire.com or contact Alpha sales.
| Insulation Thickness | 0.010 in (0.25 mm) |
|---|---|
| Voltage Rating | 300 V |
| Bend Radius | 10× static, 15× dynamic cable diameter |
| Conductor | Super finely stranded tinned copper |
| Shielding | Foil and 85% tinned copper braid |
| Jacket Color | Gray |
| RoHS Compliance | Compliant |
The cable is rated for 300 volts.
The cable is designed for up to 6 million flex life cycles.
Orders can be placed through Alpha’s website (www.alphawire.com) and most items ship the same day if ordered by 6:00 EST.
