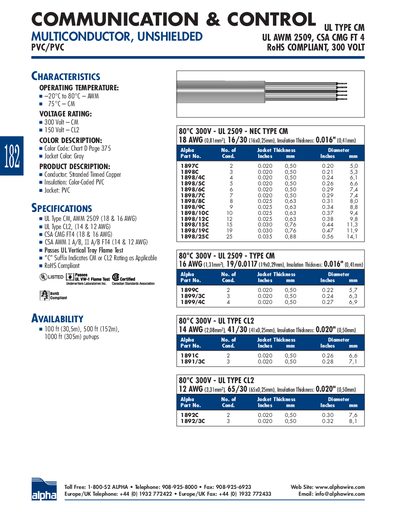

The Alpha multiconductor cable is an unshielded PVC/PVC wire rated UL Type CM (AWM 2509) and CSA CMG FT4. It features stranded tinned copper conductors, color‑coded PYC insulation, and a gray jacket. The cable complies with RoHS and passes UL vertical tray flame tests.
Operating temperatures range from –20 °C to 80 °C, with voltage ratings of 300 V for CM and 150 V for CL2. It is offered in lengths of 100 ft, 500 ft, and 1000 ft. For more information contact Alpha at 1‑800‑52‑ALPHA or visit www.alphawire.com.
| Operating Temperature | -20 °C to 80 °C |
|---|---|
| Voltage Rating (CM) | 300 V |
| Voltage Rating (CL2) | 150 V |
| Jacket Color | Gray |
| Conductor Material | Stranded Tinned Copper |
| Insulation Type | Color‑Coded PYC |
| UL Type | CM, AWM 2509 (18 & 16 AWG) |
| RoHS Compliance | Yes |
The cable operates from –20 °C to 80 °C.
The CM‑rated version is rated for 300 V.
Yes, the cable is RoHS compliant.
It is available in 100 ft, 500 ft, and 1000 ft lengths.
