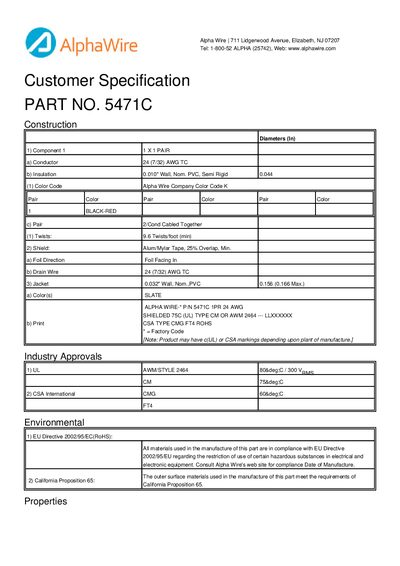

Alpha Wire 5471C Datasheet
The Alpha Wire 5471C is a 24 AWG (7/32) twisted‑pair wire with PVC insulation, a slate‑colored jacket, and a black‑red conductor color code. It is shielded with aluminum/Mylar tape and includes a drain wire, meeting UL AWM/STYLE 2464 and CSA CMG approvals.
The datasheet lists physical, mechanical, and electrical properties such as a temperature range of –20 °C to 80 °C, a voltage rating of 300 V, and detailed capacitance, impedance, and resistance values. It also confirms RoHS compliance and provides packaging options.
Alpha 5471C specifications
| Conductor size | 24 (7/32) AWG TC |
|---|---|
| Insulation wall thickness | 0.010" PVC, semi‑rigid 0.044" |
| Color code | BLACK‑RED |
| Bend radius | 10 × cable diameter |
| Pull tension (max) | 10.6 lb |
| Voltage rating | 300 V |
| Mutual capacitance | 35 pF/ft @1 kHz |
| Ground capacitance | 63 pF/ft @1 kHz |
| Inductance | 0.19 µH/ft |
Source: Alpha Wire 5471C Datasheet
All Alpha 5471C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature range for the Alpha Wire 5471C?
The specified temperature range is -20 °C to 80 °C.
What industry approvals does the 5471C have?
It is approved by UL (AWM/STYLE2464 80 °C/300 V), CSA International (CMG 60 °C FT4), complies with EU RoHS, and meets California Proposition 65 requirements.
