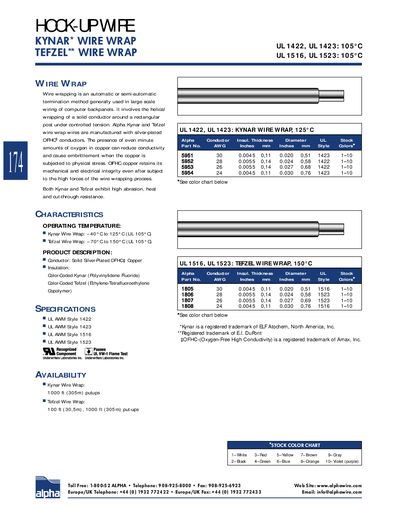

This is a PDF document about Alpha Kynar and Tefzel wire wrap wire products. The document provides the products' specifications, including wire size, insulation thickness, diameter, color, etc.
Wire wrapping is a termination method used for large‑scale wiring of computer back‑panels, where a solid conductor is helically wrapped around a rectangular post under controlled tension. Alpha offers Kynar and Tefzel wire‑wrap products that use silver‑plated OFHC copper conductors for high conductivity and mechanical strength.
Both products meet UL standards (Kynar: UL 1422/1423, Tefzel: UL 1516/1523) and are available in color‑coded insulation for easy identification. Kynar operates from –40 °C to 125 °C, while Tefzel operates from –70 °C to 150 °C. Rolls are offered in 100 ft and 1000 ft lengths, and contact information for Alpha Wire is provided for ordering.
| Kynar operating temperature | –40 °C to 125 °C (UL 105 °C) |
|---|---|
| Tefzel operating temperature | –70 °C to 150 °C (UL 105 °C) |
| Kynar UL certification | UL 1422, UL 1423 |
| Tefzel UL certification | UL 1516, UL 1523 |
| Kynar roll length | 1000 ft (305 m) |
Alpha Kynar wire wrap operates from –40 °C to 125 °C (UL 105 °C).
Alpha Tefzel wire wrap operates from –70 °C to 150 °C (UL 105 °C).
