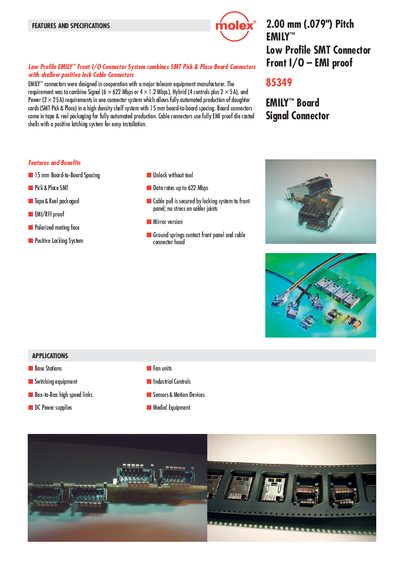

This document describes the features and characteristics of EMILY™ Low Profi le SMT Connector Front I/O
The EMILY™ low‑profile SMT connector from Molex combines board‑mount and cable‑mount solutions in a 2.00 mm (0.079") pitch package. It offers EMI/RFI‑proof, positive‑locking design, and is supplied in tape‑and‑reel packaging for automated production. The connector supports high‑speed data rates up to 622 Mbps and includes features such as a mirror version, polarized mating face, and ground springs.
The datasheet lists electrical ratings (30 VRMS, 0.5 A/contact), mechanical forces (insertion < 1 N, mating 0.6 N max/contact), durability (200 cycles), and environmental limits (‑20 °C to +85 °C). Ordering information, dimensions, and packaging details are also provided.
| Pitch | 2.00 mm (0.079") |
|---|---|
| Voltage rating | 30 VRMS |
| Current per contact | 0.5 A/contact |
| Contact resistance | 20 mΩ max. |
| Dielectric Withstanding Voltage | 250 VDC |
| Insertion force to PCB | < 1 N |
| Mating force | 0.6 N max/contact |
| Durability | 200 cycles |
| Operating temperature | ‑20 °C to +85 °C |
| Contact plating | Gold 0.76 µm |
The connector has a 2.00 mm (0.079") pitch.
The connector is rated for 30 VRMS.
It is rated for 200 mating cycles.
The board connector is supplied in tape‑and‑reel packaging.
