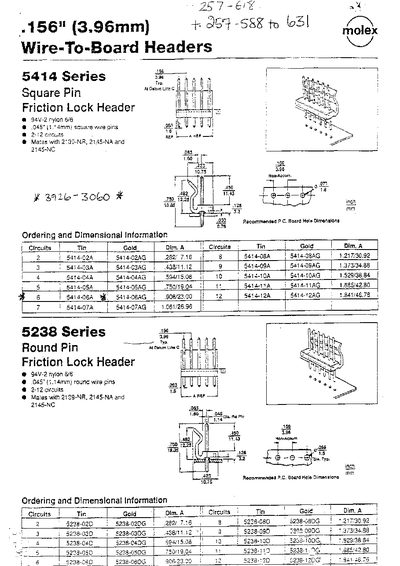

The 5414 series from Molex provides 156 (3.96 mm) wire‑to‑board friction‑lock headers in both square‑pin and round‑pin configurations. Available pin sizes are 0.045" (1.44 mm) for square pins and 0.045" (1.14 mm) for round pins, with housing made from nylon 6/6.
The headers are offered in 2‑12 circuit counts and include detailed ordering numbers, dimensional drawings and recommended board‑hole sizes. Compatibility with part numbers such as 2139‑NR, 2145‑NA and 2145‑NC is also listed.
| Pin size (square) | 0.045" (1.44 mm) |
|---|---|
| Pin size (round) | 0.045" (1.14 mm) |
| Number of circuits | 2‑12 |
| Housing material | Nylon 6/6 |
| Header type | Friction lock |
They are available with 2 to 12 circuits.
The housing is made from nylon 6/6.
