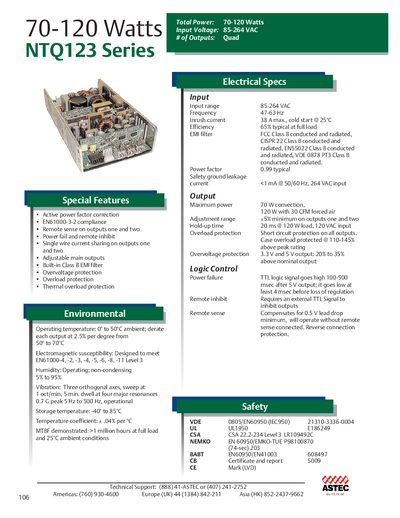

The NTQ123 Series from Emerson Network Power delivers 70 W (convection cooled) to 120 W (forced‑air cooled) output power with active power‑factor correction and remote‑sense capability. Key electrical specs include an input range of 85‑264 VAC, 47‑63 Hz frequency, 38 A inrush current, 65 % typical efficiency, and a 0.99 power factor.
The series meets multiple safety and EMC standards (UL, CSA, CE, EN‑61000‑3‑2, etc.) and operates from 0 °C to 50 °C (storage –40 °C to 85 °C). Pin assignments and connector details are provided for both power and control signals, and the unit includes overload, short‑circuit, and thermal protection features.
| Input voltage range | 85‑264 VAC |
|---|---|
| Input frequency | 47‑63 Hz |
| Inrush current | 38 A max. |
| Efficiency (full load) | 65 % typical |
| Power factor (typical) | 0.99 |
| Maximum power (convection cooled) | 70 W |
| Maximum power (forced‑air cooled) | 120 W |
| Hold‑up time @ 120 W load | 20 ms |
| Operating temperature range | 0 °C to 50 °C |
| Storage temperature range | -40 °C to 85 °C |
| MTBF (full load) | >1 million hours |
The NTQ123 series accepts an input voltage range of 85 VAC to 264 VAC.
Remote inhibit requires an external TTL signal (5 V @ 10 mA) to activate.
