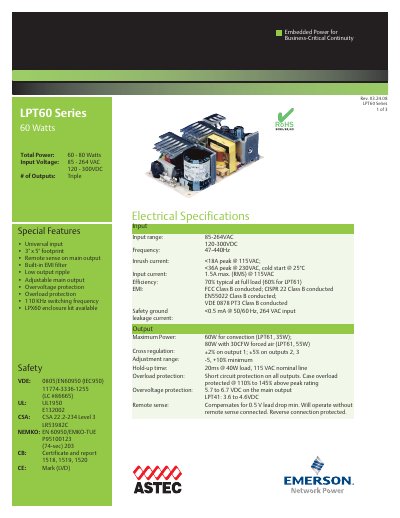

The LPT60 Series embedded power supplies provide 60‑80 W of continuous power for business‑critical equipment. They feature a universal input range of 85‑264 VAC or 120‑300 VDC, three selectable output voltages, remote‑sense capability, and built‑in EMI filtering.
The series includes safety protections such as over‑voltage and overload protection, and meets multiple international certifications (UL, CSA, VDE, CE). Ordering information, mechanical dimensions, and connector pin assignments are also provided for system integration.
| Input Voltage | 85‑264 VAC / 120‑300 VDC |
|---|---|
| Total Power | 60‑80 W |
| Efficiency | 70 % typical at full load |
| Switching Frequency | 110 kHz |
| Overload Protection | Short‑circuit protection on all outputs, up to 110‑145 % of peak rating |
| Overvoltage Protection | 5.7‑6.7 VDC on main output |
| Operating Temperature | 0 °C to 50 °C (ambient) |
It accepts a universal input of 85‑264 VAC or 120‑300 VDC.
Typical efficiency is 70 % at full load.
The enclosure measures 3.00 in (76.2 mm) × 2.55 in (64.8 mm) × 0.22 in (5.6 mm).
