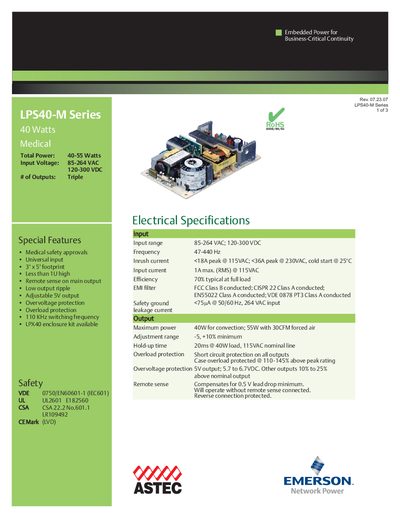

LPS40-M series is a high performance medical grade AC-DC power supply with medical safety approvals, wide input voltage range, adjustable 5V output, low output ripple, overvoltage protection, overload protection and other features.
The LPS40-M Series is a compact, less‑than‑1U medical power supply offering triple isolated outputs, remote sense, low output ripple, and adjustable 5 V output. It is designed for business‑critical continuity with over‑voltage and overload protection.
Key specifications include a total power of 40‑55 W, input range 85‑264 VAC (120‑300 VDC), 110 kHz switching frequency, and efficiency around 70% at full load. The unit operates from 0 °C to 50 °C, can be stored from –40 °C to +85 °C, and meets VDE, UL, CSA, and CE safety standards.
| Total Power | 40-55 Watts |
|---|---|
| Input Voltage | 85-264 VAC / 120-300 VDC |
| Number of Outputs | Triple |
| Switching Frequency | 110 kHz |
| Adjustable Output Voltage | 5 V |
| Typical Efficiency | 70% at full load |
| Operating Temperature | 0 °C to 50 °C ambient |
| Storage Temperature | -40 °C to +85 °C |
It is certified to VDE, UL, CSA, and CE standards.
The unit accepts 85‑264 VAC or 120‑300 VDC.
The power supply delivers between 40 W and 55 W.
