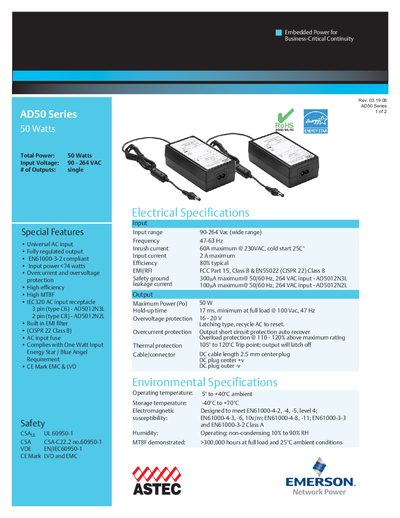

This document describes the features and characteristics of the AD50 series embedded power supply, including universal AC input, regulated output, compliance with EN61000-3-2, overcurrent and overvoltage protection, etc.
The AD50 Series is an embedded power supply designed for business‑critical continuity. It delivers a regulated 50 W output from a wide AC input range and includes built‑in protection features.
Key specifications include a 90‑264 VAC input range, 80 % typical efficiency, and over 300 000 hours MTBF. The manual also lists safety certifications (CSA, UL, CE, FCC) and detailed wiring and mechanical drawings for proper installation.
| Total Power | 50 W |
|---|---|
| Input Voltage Range | 90 – 264 VAC |
| Number of Outputs | single |
| Input Frequency | 47 – 63 Hz |
| Typical Efficiency | 80 % typical |
| MTBF | >300,000 hours at full load, 25 °C |
| Overcurrent Protection | 110 – 120 % above maximum rating |
The AD50 Series accepts an input voltage from 90 VAC to 264 VAC.
The unit provides a maximum output power of 50 W.
