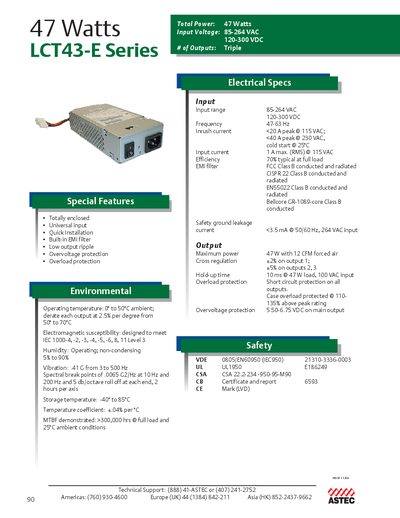

This document describes the technical specifications and features of the Watts LCT43-E series power supply. The power supply is totally enclosed and has a universal input, quick installation, built-in EMI filter, low output ripple, and overvoltage and overload protection. It operates in a temperature range of 0° to 50°C, with a gradual decrease in output power at higher temperatures. The power supply meets the electromagnetic susceptibility requirements of IEC 1000-4, -2, -3, -4, -5, -6, 8, 11 Level 3. It is certified by UL, CSA, VDE, CB, and CE.
The LCT43‑E Series is a totally enclosed, triple‑output power supply offering 47 W total power with built‑in EMI filtering, over‑voltage and overload protection, and a low output ripple. It operates from a universal input range of 85‑264 VAC or 120‑300 VDC and meets IEC electromagnetic susceptibility Level 3 requirements.
Environmental ratings include an operating temperature range of 0 °C to 50 °C, storage temperature from –40 °C to 85 °C, and vibration resistance up to 0.41 G. The unit is certified for UL, CSA, CE, and other safety standards, and is supported by Emerson technical service contacts worldwide.
| Total Power | 47 Watts |
|---|---|
| Input Voltage (AC) | 85‑264 VAC |
| Input Voltage (DC) | 120‑300 VDC |
| Number of Outputs | Triple |
| Operating Temperature | 0 °C to 50 °C ambient |
| Storage Temperature | -40 °C to 85 °C |
| MTBF | >300,000 hrs @ full load, 25 °C |
| Efficiency (typical) | 70 % at full load |
| Overload Protection | Yes, short‑circuit protection on all outputs |
The LCT43‑E provides a total power of 47 Watts.
It accepts 85‑264 VAC or 120‑300 VDC as input.
The unit has three (triple) output channels.
The demonstrated MTBF is greater than 300,000 hours at full load and 25 °C ambient.
