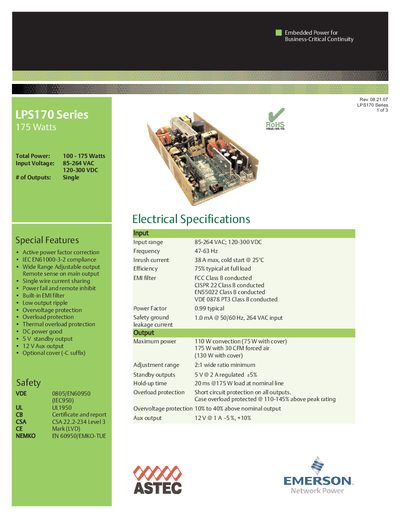

This document describes the features and characteristics of the Embedded Power for Business-Critical Continuity LPS170 Series 175 Watts, including active power factor correction, IEC EN61000-3-2 compliance, wide range adjustable output remote sense, single wire current sharing, power fail and remote inhibit, built-in EMI filter, low output ripple, overvoltage protection, overload protection, thermal overload protection, DC power good, 5V standby output, 12V aux output, etc.
The LPS170 Series is an embedded power supply designed for business‑critical continuity. It supports a total power range of 100‑175 W and offers a single output with optional standby and auxiliary outputs. The manual details electrical specifications, environmental limits, and remote‑inhibit functions.
Key features include an input voltage range of 85‑264 VAC or 120‑300 VDC, 75 % typical efficiency at full load, 0.99 power factor, and safety hold‑up time of 20 ms at 175 W. The unit meets multiple safety and EMC standards (UL, CE, VDE, CSA) and is rated for operation from 0 °C to 50 °C with storage from –40 °C to +85 °C. Contact information for global support is provided.
| Total Power | 100 - 175 Watts |
|---|---|
| Input Voltage | 85-264 VAC / 120-300 VDC |
| Efficiency | 75 % typical at full load |
| Power Factor | 0.99 typical |
| Safety Hold‑up Time | 20 ms @ 175 W load |
| Operating Temperature | 0 °C to 50 °C ambient |
| Storage Temperature | -40 °C to +85 °C |
| MTBF | >550,000 hours at full load |
| Standby Output | 5 V @ 2 A |
The input voltage range is 85‑264 VAC or 120‑300 VDC.
Efficiency is about 75 % typical at full load.
Safety hold‑up time is 20 ms at a 175 W load.
