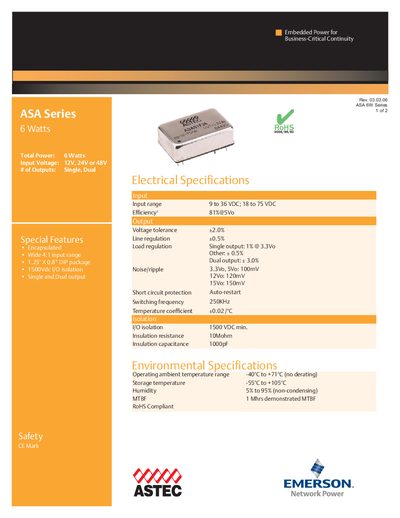

The ASA 6W Series is a 6-watt embedded power module from Emerson Network Power. It has a compact package, a wide input voltage range, and supports single and dual outputs.
The ASA 6W Series from Astec Power is an embedded power solution designed for business‑critical continuity. It offers a wide input voltage range, high efficiency, and multiple configurable output options for 3.3 V, 5 V, 12 V and 15 V supplies.
Key specifications include input ranges of 9‑36 VDC or 18‑75 VDC, efficiency of 81 % at 5 V, and robust protection features such as auto‑restart short‑circuit protection. The units operate from –40 °C to +71 °C, are RoHS compliant, and are supported by global technical support contacts.
| Input voltage range | 9 to 36 VDC; 18 to 75 VDC |
|---|---|
| Efficiency | 81% @ 5V0 |
| Voltage tolerance | 42.0% |
| Line regulation | +0.5% |
| Load regulation (single output) | 1% @ 3.3V0 |
| Noise / ripple (3.3V, 5V) | 100 mV |
| Switching frequency | 250 kHz |
| Isolation | ≥1500 VDC |
| Operating ambient temperature range | -40 °C to +71 °C |
| RoHS compliance | Yes |
The ASA 6W Series accepts an input voltage of 9 V to 36 VDC or 18 V to 75 VDC.
Available configurations include 3.3 V @ 1.2 A, 5 V @ 1.0 A, 12 V @ 0.5 A, 15 V @ 0.4 A and dual‑output options such as 5 V @ 0.5 A / ‑5 V @ 0.5 A.
Yes, the ASA 6W Series is RoHS compliant.
The units operate from –40 °C to +71 °C without derating.
