The 150 watt power supply LPS150 series has the characteristics of automatic selection of input voltage range, remote sensing, remote inhibition, power failure, single wire current sharing, built-in EMI filter, low output ripple, adjustable output, 135kHz switching frequency, overvoltage protection, overload protection, etc.

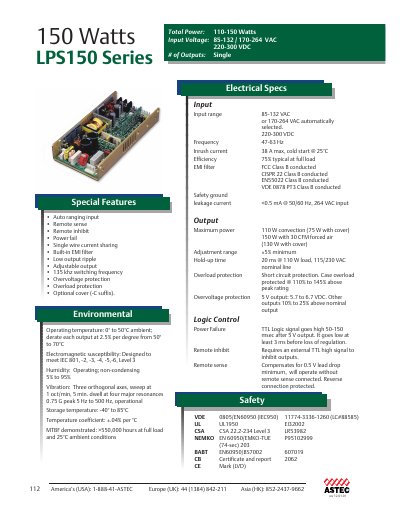

The ASTEC LPS150 Series is a 150‑W power supply offering a selectable input range of 85‑132 VAC or 170‑264 VAC and a typical efficiency of 75 % at full load. It provides multiple output options, including 5 V, 12‑15 V, and 24‑28 V, with overload, over‑voltage, and power‑fail protection.
The unit operates from 0 °C to 50 °C ambient temperature (derating 2.5 % per °C above 50 °C) and meets IEC and FCC EMI standards. Mechanical specifications include a 20 ms hold‑up time at 110 W load and an MTBF of over 550,000 hours.
| Input voltage range | 85‑132 VAC or 170‑264 VAC |
|---|---|
| Maximum output power | 150 W with forced air |
| Efficiency at full load | 75 % typical |
| Operating temperature range | 0 °C to 50 °C ambient |
| Hold‑up time | 20 ms @ 110 W load |
| MTBF | >550,000 hours at full load |
It accepts 85‑132 VAC or 170‑264 VAC, automatically selected.
The unit can deliver up to 150 W with forced‑air cooling (130 W with a cover).
Typical efficiency is 75 % when operating at full load.
The power supply operates from 0 °C to 50 °C ambient temperature.
