DPT50-M series embedded power, 30-50 watts of power, supports 127-300 volts of direct current and 90-264 volts of alternating current input, with over-power and short-circuit protection, high efficiency, high MTBF, and meets EN61000-3-2 standard.

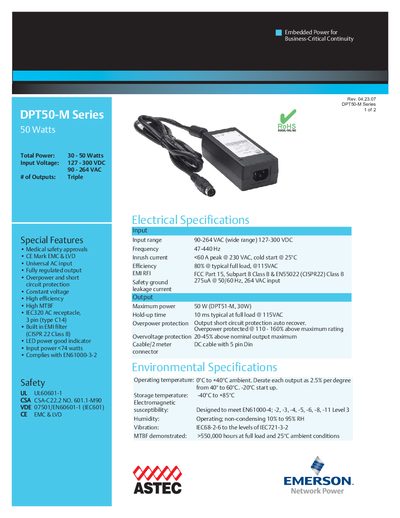

The DPT50-M Series is an embedded power solution designed for business‑critical continuity. It offers a triple output configuration, medical safety approvals, CE Mark EMC & LVD, and built‑in EMI filtering. The unit operates from a wide AC input range and provides fully regulated output with overload and short‑circuit protection.
Key specifications include total power of 30‑50 W, input voltage 127‑300 VDC (90‑264 VAC), efficiency up to 80 %, MTBF over 550,000 hours, and operating temperatures from 0 °C to +40 °C. Ordering information, mechanical drawings, and global contact details are provided for integration and support.
| Total Power | 30 - 50 Watts |
|---|---|
| Input Voltage | 127 - 300 VDC / 90 - 264 VAC |
| Number of Outputs | Triple |
| Efficiency | 80% @ typical full load |
| MTBF | >550,000 hours |
| Operating Temperature | 0°C to +40°C ambient |
| Storage Temperature | -40°C to +85°C |
| Overpower Protection | Auto‑recover short‑circuit protection |
| Safety Certifications | UL60601-1, CSA‑C22.2, VDE‑07501, CE EMC&LVD |
The DPT50-M Series can deliver up to 50 W of output power.
It is approved to UL60601-1, CSA‑C22.2 NO. 601.1‑M90, VDE 07501/EN60601‑1, and CE EMC & LVD standards.
The unit accepts a universal AC input of 90‑264 VAC or 127‑300 VDC.
The power supply achieves about 80 % efficiency at typical full load.
