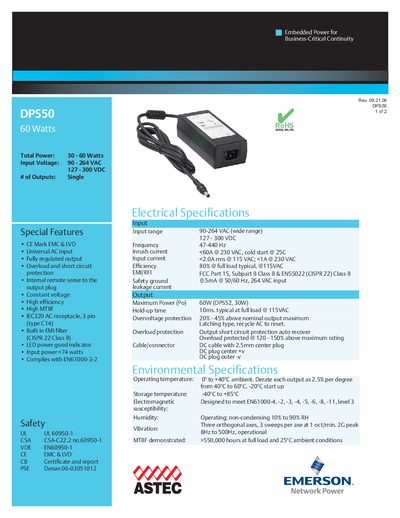

This document introduces an embedded power supply called DPS50, which is used for ensuring business-critical continuity. The product features CE Mark EMC & LVD, universal AC input, fully regulated output, overload and short circuit protection, etc.
The DPS50 series from Emerson Network Power delivers 30‑60 W of total power in a compact embedded form factor. It features universal AC input (90‑264 VAC, 127‑300 VDC), a single regulated output, high efficiency (≈80 % at full load), and extensive protection including overload, short‑circuit, and EMI filtering.
Ordering information, mechanical drawings, and compliance details are included. The product meets UL 60950‑1, CSA‑C22.2‑60950‑1, VDE EN60950‑1, CE EMC & LVD certifications, and is designed for operation from 0 °C to +40 °C (storage –40 °C to +85 °C).
| Total Power | 30 - 60 Watts |
|---|---|
| Input Voltage (AC) | 90 - 264 VAC |
| Input Voltage (DC) | 127 - 300 VDC |
| Number of Outputs | Single |
| Efficiency | ≈80 % at full load |
| MTBF | >550,000 hours at full load, 25 °C |
| Safety Certifications | UL 60950‑1, CSA‑C22.2‑60950‑1, VDE EN60950‑1, CE EMC & LVD |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | -40 °C to +85 °C |
The DPS50 series provides a total power range of 30 to 60 W.
It complies with UL 60950‑1, CSA‑C22.2‑60950‑1, VDE EN60950‑1, and CE EMC & LVD.
The demonstrated MTBF is over 550,000 hours at full load and 25 °C ambient.
Typical efficiency is about 80 % at full load.
