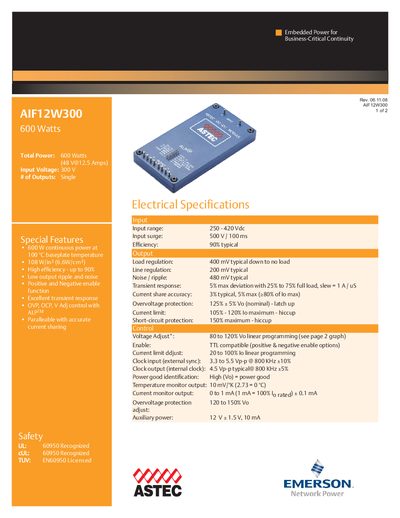

AIF12W300 600 Watts is a high power, high efficiency, low noise modular power supply for critical business continuity applications.
The AIF12W300 is a 600 W AC‑DC power supply designed for business‑critical continuity. It offers a wide input voltage range, high efficiency, and programmable voltage and current limits.
The datasheet lists detailed electrical specifications, temperature limits, and pin‑out information, along with model variations and contact details for global support.
| Input voltage range | 250 – 420 Vdc |
|---|---|
| Input surge rating | 500 V / 100 ms |
| Typical efficiency | 90 % typical |
| Load regulation | 400 mV typical down to no load |
| Line regulation | 200 mV typical |
| Noise ripple | 480 mV typical |
| Transient response | 5 % max deviation, 1 A/µs slew |
| Current share accuracy | 3 % typical, 5 % max |
| Overvoltage protection | 125 % + 5 % Vo (nominal) |
| Clock input (external sync) | 3.3 to 5.5 Vp‑p @ 800 kHz ±10 % |
| Clock output (internal) | 4.5 Vp‑p typical @ 800 kHz ±5 % |
| Power‑good identification | High (Vo) = power good |
| Operating temperature (case) | -20 °C to +100 °C |
| Storage temperature (case) | -40 °C to +125 °C |
The AIF12W300 accepts an input voltage from 250 V to 420 V dc.
The typical efficiency is 90 %.
A high output voltage (Vo) indicates that power is good.
