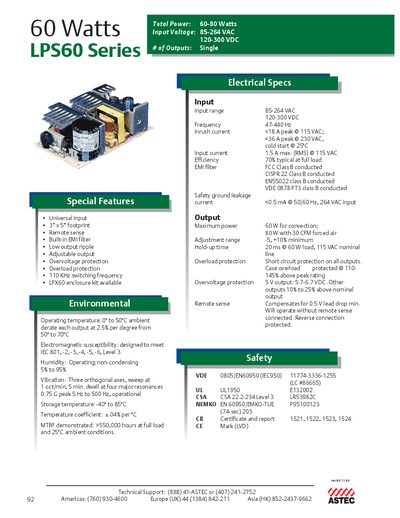

LPS60 series AC/DC power supplies feature: Universal input, 3” x 5” footprint, remote sense, built-in EMI filter, low output ripple, adjustable output, overvoltage protection, overload protection, 110 KHz switching frequency, LPX60 enclosure kit available.
The LPS60 Series is a 60‑80 W power supply with a compact 3"×5" footprint. It features universal AC input, remote sense, built‑in EMI filtering, adjustable output, over‑voltage and overload protection, and a 110 kHz switching frequency. Various output models (3.3 V‑48 V) are offered with convection or forced‑air cooling.
Environmental ratings include operation from 0 °C to 50 °C ambient, storage from –40 °C to 85 °C, and MTBF >550,000 h at full load. The unit meets IEC 801 electromagnetic susceptibility standards and carries FCC, CE, UL, CSA and other certifications. Ordering information and connector pin‑assignments are provided for easy integration.
| Input Voltage | 85‑264 VAC / 120‑300 VDC |
|---|---|
| Maximum Power | 60‑80 W |
| Efficiency | 70 % typical at full load |
| MTBF | >550,000 hours at full load, 25 °C |
| Operating Temperature | 0 °C to 50 °C ambient |
| Overload Protection | 110‑145 % above peak rating |
| Remote Sense | Supported |
The unit accepts 85‑264 VAC or 120‑300 VDC input.
The demonstrated MTBF is greater than 550,000 hours at full load and 25 °C ambient.
