This PDF file is about L-383SGWT SUPER BRIGHT GREEN spec sheet, includes the product package dimensions, features, optical characteristics, absolute maximum ratings and other information

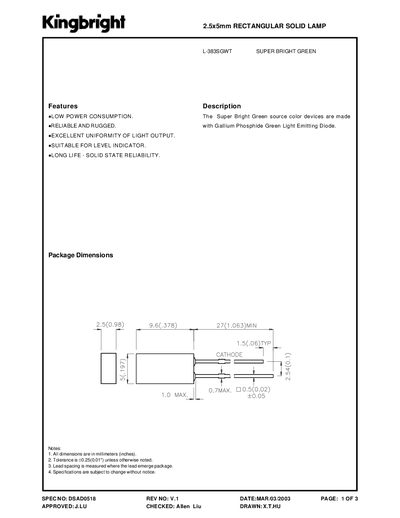

The Kingbright L-383SGWT is a 2.5 × 5 mm rectangular solid-state lamp that delivers super bright green light using a gallium phosphide LED. It offers low power consumption, high uniformity, and long life, making it suitable for level indicators and other applications.
The datasheet provides package dimensions, selection guide information, electrical and optical parameters, absolute maximum ratings, and relative radiant intensity curves, allowing designers to evaluate performance under various operating conditions.
| Peak Wavelength | 565 nm |
|---|---|
| Forward Voltage (20 mA) | 2.2 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| Maximum Continuous Forward Current | 25 mA |
| Peak Forward Current (pulse) | 140 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Lead Spacing | 1.5 mm |
The forward voltage is 2.2 V at a test current of 20 mA.
The peak wavelength is 565 nm.
The device can handle a continuous forward current of 25 mA and a peak forward current of 140 mA.
It operates from –40 °C up to +85 °C.
