MAZ4000 series Zener diodes are high-reliability products using DHD structure. They are allowed to be inserted into 5mm pitch holes. The voltage range is wide and the rising speed is fast. They are widely used in power supply stabilization.
The MAZ4000 Series Zener diodes from Panasonic are silicon planar devices offering a wide voltage range from 2.0 V to 39 V. They feature high reliability thanks to a DHD structure, fine‑graded voltage steps, and a sharp rising characteristic.

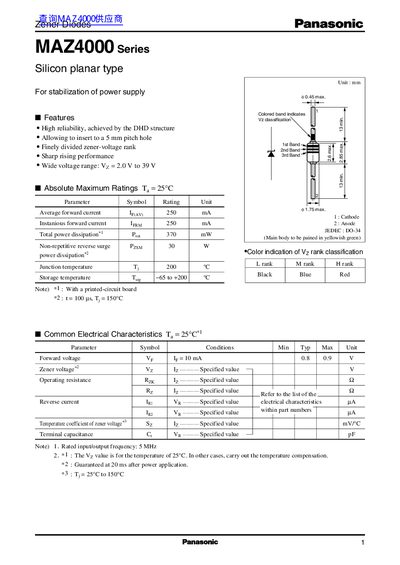

The datasheet lists absolute maximum ratings, typical forward voltage, reverse current, operating resistance, and thermal limits. Detailed tables give the nominal, minimum, and maximum values for each part number, along with color‑coded voltage band markings and package dimensions.
| Voltage range (Vz) | 2.0 V to 39 V |
|---|---|
| Junction temperature max (Tj) | 200 °C |
The series covers a Zener voltage range from 2.0 V up to 39 V.
