EE14 is a series of specialty polymer aluminum electrolytic capacitors. It features low ESR, excellent noise-absorbing characteristics and excellent electrical properties. The product is available in Japan and Singapore.

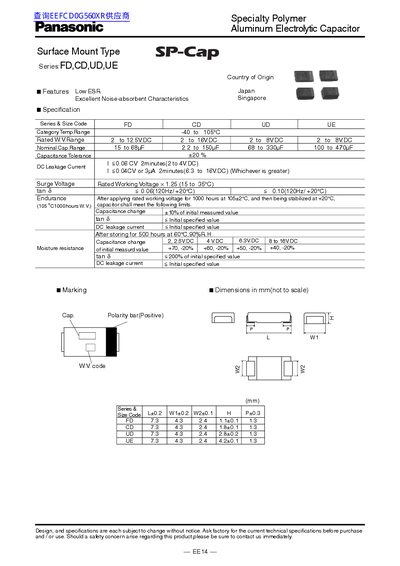

This handbook provides data for Panasonic's FD, CD, UD, and UE series surface‑mount aluminum electrolytic capacitors. It lists the series codes, temperature range, rated voltage, capacitance values, tolerance, leakage current, and mechanical dimensions.
The document includes tables of standard part numbers, packaging quantities, and electrical characteristics such as ESR and ripple current. It also notes endurance testing conditions and safety notices for the components.
| Temperature Range | -40 °C to 105 °C |
|---|---|
| Rated Working Voltage | 2 V to 125 V DC (depending on series) |
| Nominal Capacitance | 2.2 µF to 470 µF |
| Capacitance Tolerance | ±20 % |
| Surge Voltage Rating | 1.25 × rated voltage (15 °C to 35 °C) |
| Endurance Test | 1000 h at 105 °C then stabilize at +20 °C |
| Dimensions (FD series) | L 7.3 mm × W 4.3 mm × H 2.4 mm |
They operate from –40 °C up to 105 °C.
The capacitance tolerance is ±20 %.
They are rated for 1000 hours at 105 °C, after which they are stabilized at +20 °C.
