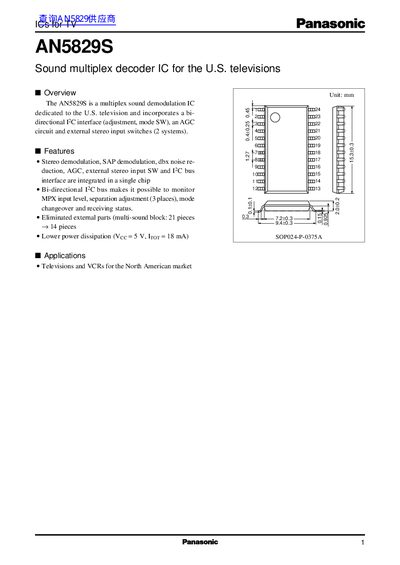

The AN5829S is a multiplex sound demodulation IC dedicated to the U.S. television and incorporates a bi- directional I2C interface (adjustment, mode SW), an AGC circuit and external stereo input switches (2 systems).
The AN5829S is a multiplex sound demodulation IC dedicated to U.S. televisions. It integrates stereo and SAP demodulation, dbx noise reduction, AGC, external stereo input switches, and an I²C bus for monitoring and control. Typical applications include televisions and VCRs for the North American market.
The document details pin functions, absolute maximum ratings, recommended operating ranges, and extensive electrical characteristics such as supply voltage, current consumption, output levels, distortion, and crosstalk. It also includes block diagrams, terminal equivalent circuits, and an example application circuit.
| Supply voltage (VEE) range | 4.5 to 5.5 V |
|---|---|
| Power dissipation | 150 mW |
| Input level (L+R) at 100% modulation | 75 mV rms |
| Operating temperature range | -20 °C to +75 °C |
The recommended supply voltage (VEE) is 4.5 to 5.5 V.
It is intended for televisions and VCRs for the North American market.
The input level for L+R is 75 mV rms at 100 % modulation.
