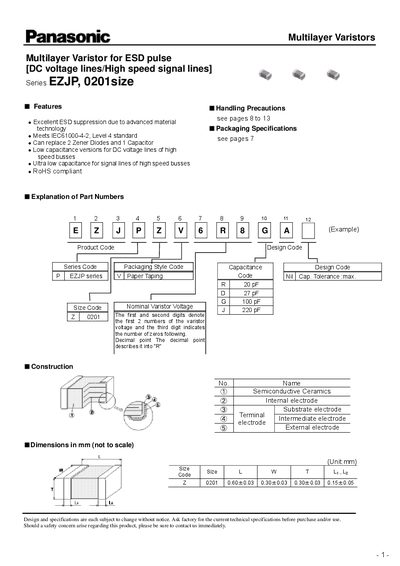

The document provides information about the design and specifications of the Multilayer Varistors Multilayer Varistor for ESD pulse [DC voltage lines/High speed signal lines] Series EZJP, 0201size. It emphasizes the potential for changes in design and specifications, and highlights the importance of contacting the factory for current technical specifications. The document also includes details about the product's dimensions, packaging style, design code, and features.
The EZJP series multilayer varistors are designed for ESD suppression on DC voltage lines and high‑speed signal lines. The document lists the series features, part‑number explanation, construction details and recommended applications such as mobile phones, audio/video equipment and automotive electronics.
It also provides performance specifications, testing methods, handling and soldering guidelines, as well as packaging information for the 0201‑size devices. Safety precautions and inspection procedures are included to ensure reliable use in consumer and industrial products.
| Varistor voltage | 6.8 to 27 V (at 1 mA) |
|---|---|
| Capacitance | 15 to 150 pF (typ., at 1 MHz) |
| Operating temperature range | -40 °C to 85 °C |
| Package size code | 0201 |
| Reel quantity (0201 size) | 15,000 pcs per reel |
Reflow soldering is the recommended method; hand soldering requires careful temperature control to avoid thermal stress.
The varistors can be used from –40 °C up to 85 °C.
Each reel contains 15,000 pieces of the 0201‑size varistor.
