The FC series electrolytic capacitors are low impedance radial lead products with high reliability, high capacity, low temperature coefficient, low ESR, low ESL, etc., and are widely used in power supplies, computers, communications, automobiles, medical and other fields.

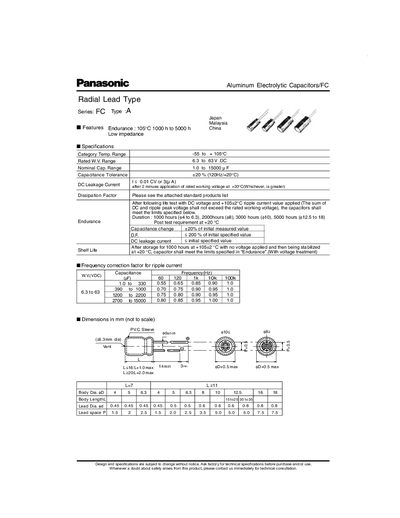

The FC A series is a line of radial‑lead aluminum electrolytic capacitors offered by Panasonic. The document lists the temperature range, rated voltage, capacitance values, tolerance, leakage current, and endurance test results for the series.
Detailed tables provide case size, impedance, ripple current, lead dimensions, and part numbers for each capacitance and voltage rating. Ordering notes and packaging quantities are also included.
| Temperature range | 5 to +105 °C |
|---|---|
| Rated voltage range | 6.3 to 63 V DC |
| Nominal capacitance range | 1.0 to 15000 pF |
| Capacitance tolerance | 20 % (120 Hz/420 °C) |
| DC leakage current | 0.01 CV or 3 µA |
| Endurance duration (test) | 1000‑5000 h depending on voltage |
They are rated for operation from 5 °C up to +105 °C.
The capacitors are available with rated voltages from 6.3 V DC to 63 V DC.
The tolerance is specified as 20 % (measured at 120 Hz/420 °C).
