This electronic file introduces the basic principles, characteristics, models and selection methods of gold capacitors, which can provide a reference for circuit designers

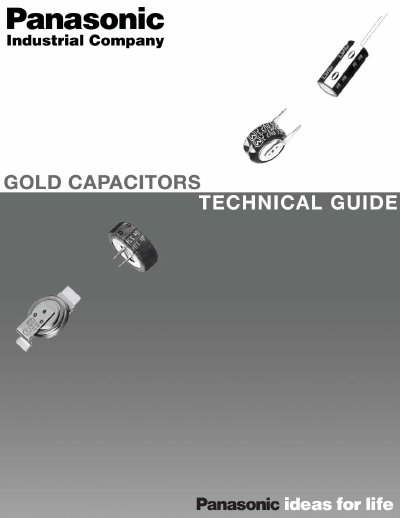

This guide introduces Panasonic's Gold Capacitors, a type of electric double‑layer capacitor (EDLC) that uses activated‑carbon electrodes and a non‑water soluble organic electrolyte. It describes the construction, equivalent circuit and electrical characteristics of the devices.
The document also covers product families, selection methods, operating techniques, storage capabilities and a full list of model numbers. Practical applications such as backup power for microprocessors, solar batteries, video recorders and other consumer electronics are highlighted.
| Capacitance range | mid‑range between aluminum electrolytic capacitor and secondary battery |
|---|---|
| Electrolyte type | non‑water soluble electrolyte |
Gold Capacitors are electric double‑layer capacitors that use activated‑carbon electrodes and an organic electrolyte to create a thin double electric field that stores charge.
