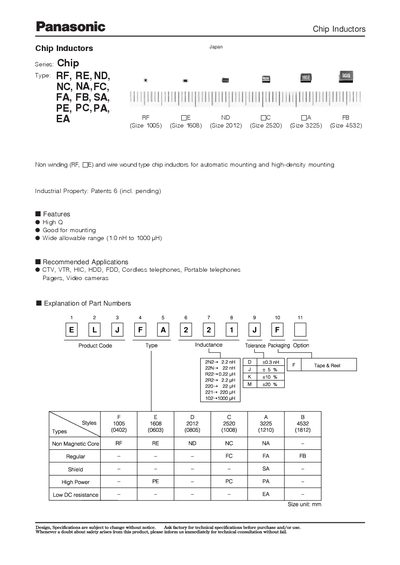

This document is the datasheet of chip inductors from ELJ, a Japanese electronic component manufacturer. It introduces the features, characteristics, and applications of this series of products.
This document provides detailed information on Panasonic chip inductors, covering the various series (RF, RE, ND, NC, NA, FC, FA, SA, FB, PE, PC, PA, EA) and their electrical characteristics such as inductance range, tolerance, Q factor, and self‑resonant frequency. It also lists the physical sizes (0402, 0603, 0805, 1008, 1210, 1812) and packaging options for each type.
Additional sections describe recommended land‑pattern design, mounting force limits, soldering conditions, cleaning procedures, current rating, and storage recommendations to ensure reliable performance in high‑density assemblies.
| Inductance range | 1.0 nH to 1000 pH |
|---|---|
| Standard size codes | 0402 (1005), 0603 (1608), 0805 (2012), 1008 (2520), 1210 (3225), 1812 (4532) |
| Standard packing quantity (RF type) | 10,000 pcs |
Placement force should not exceed 20 N.
1005 corresponds to 0402, 1608 to 0603, 2012 to 0805, 2520 to 1008, 3225 to 1210, and 4532 to 1812.
The inductance ranges from 1.0 nH up to 1000 pH.
