This document is the instruction manual of AD aluminum electrolytic capacitor, which introduces the model, specifications, characteristics, usage range, application scenarios and other information of the capacitor

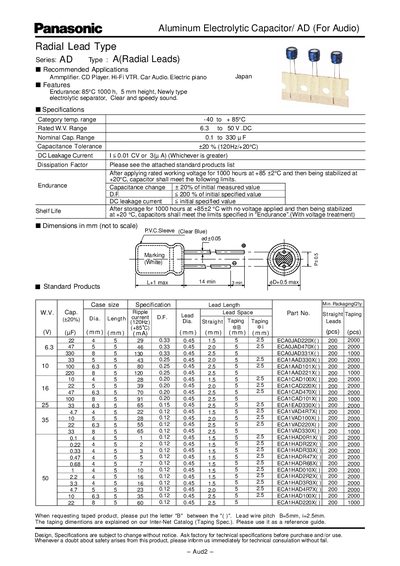

The Panasonic AD Type A series provides radial‑lead aluminum electrolytic capacitors designed for audio applications such as amplifiers, CD players and car audio. The document lists the temperature range, voltage ratings, capacitance values and endurance specifications, and includes a quick reference guide for expected life.
Detailed sections cover recommended applications, mounting considerations, handling and soldering procedures, safety precautions, and long‑term storage guidelines. The information helps designers select appropriate parts and ensure reliable operation in their circuits.
| Operating Temperature Range | -40 °C to +85 °C |
|---|---|
| Rated Working Voltage | 6.3 V to 50 V DC |
| Capacitance Range | 0.1 µF to 330 µF |
| Capacitance Tolerance | +20 % |
| DC Leakage Current | < 0.01 CV or 3 µA (whichever is greater) |
| Endurance (Temperature / Time) | 85 °C for 1000 h |
| Height | 5 mm |
The capacitors are rated for temperatures from –40 °C up to +85 °C.
The endurance specification states 85 °C for 1000 hours.
Leakage must be less than 0.01 CV or 3 µA, whichever is greater.
