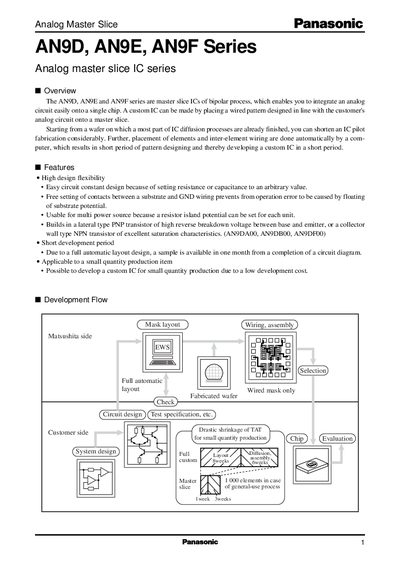

AN9D, AN9E, AN9F series analog master slice ICs, which enable you to integrate an analog circuit easily onto a single chip.
The Analog Master Slice series from Panasonic (AN9D, ANQE, AN9F) are bipolar‑process master‑slice ICs that let designers integrate analog circuits onto a single chip. By starting from a partially processed wafer, custom ICs can be created quickly with automatic layout of elements and wiring.
The series offers high design flexibility, built‑in resistors, capacitors, and various transistor types (lateral PNP, collector‑wall NPN) for low‑power, high‑speed, or high‑voltage applications. Detailed tables list pad counts, element totals, transistor and resistor counts, as well as package options.
| Supply voltage (Vcc) | up to 12 V |
|---|---|
| Maximum operating frequency | 2.6 GHz |
| Pad count range | 28 to 75 |
| Transistor count (max) | 1 610 |
The AN9D series uses a bipolar‑process master‑slice IC technology that allows easy integration of analog circuits onto a single chip.
The AN9D series supports a supply voltage up to 12 V.
Pad counts range from 28 to 75 pins depending on the specific part.
