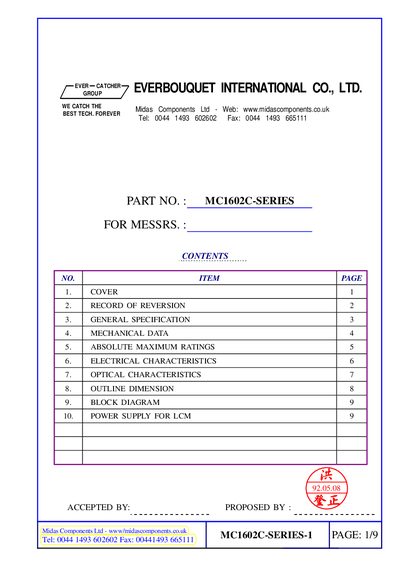

This document is a manual for MC1602C series products, including cover, revision record, specifications, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, outline dimensions, block diagram, and power supply for LCD module.
This datasheet describes the MC1602C Series LCD module from Everbouquet, covering general specifications, mechanical dimensions, and electrical and optical characteristics. It includes a record of revision, part numbering, and reference to the customer acceptance standard specifications.
Key sections detail the module size (80 mm × 36 mm), dot and character dimensions, absolute maximum ratings, recommended power supply voltages, and viewing angle and contrast data for various LCD types (TN, STN, FSTN). Pin‑out information and a block diagram are also provided for integration into designs.
| Number of Dots | 16 characters × 2 lines |
|---|---|
| Module Size | 80.0 mm W × 36.0 mm H |
| Character Size | 2.96 mm W × 4.86 mm H |
| Dot Size | 0.56 mm W × 0.66 mm H |
| Recommended LCD Driving Voltage (TN type) | 4.2 V (Vpp‑Vo) at 25 °C |
The module measures 80.0 mm in width and 36.0 mm in height.
The recommended LCD driving voltage is 4.2 V (Vpp‑Vo) for the TN type at 25 °C.
