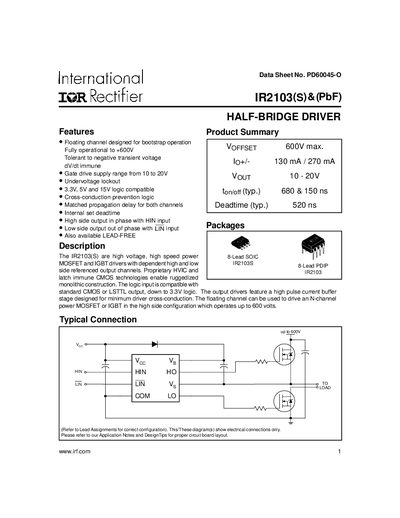

This data sheet provides detailed information on the PD60045-O, including electrical connections, features, characteristics, and description.
The IR2103S (PbF) is a high‑voltage, high‑speed MOSFET/IGBT driver with floating high‑side and low‑side channels. It supports bootstrap operation up to 600 V, offers undervoltage lockout, and is compatible with 3.3 V, 5 V and 15 V logic levels. The device includes internal dead‑time control and cross‑conduction prevention logic.
The datasheet lists absolute maximum ratings, recommended operating conditions, dynamic and static electrical characteristics, package dimensions, and lead‑free marking information for both 8‑lead SOIC and 8‑lead PDIP packages.
| Maximum high‑side floating voltage (VB) | 625 V |
|---|---|
| Maximum low‑side and logic supply voltage (VOC) | 25 V |
| Typical deadtime | 520 ns |
| Package power dissipation (PDIP) | 1.0 W |
| Junction temperature limit | 150 °C |
The high‑side floating supply (VB) can be rated up to 625 V.
The typical deadtime is specified as 520 ns.
The recommended ambient temperature range is –40 °C to 125 °C.
