International Rectifier IRS2183/IRS21834 Half-Bridge Driver Datasheet

The IRS2183/IRS21834 are high voltage, high speed power MOSFET and IGBT drivers with dependent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.

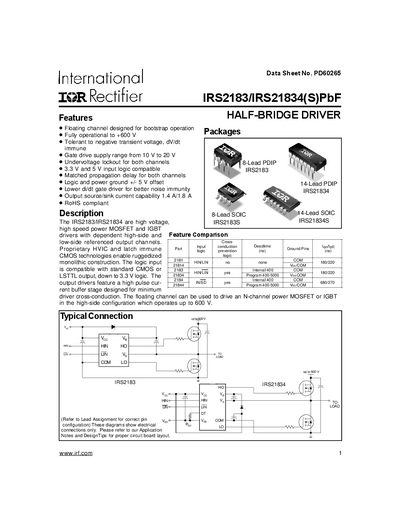

International Rectifier IRS2183/IRS21834 Half-Bridge Driver Datasheet - cover page
Brand
International Rectifier
Category
Power Management
Document type
Datasheet
Language
English
Pages
24
File format
PDF
File size
596 KB
Published
04 May, 2012
Updated
29 September, 2023
MD5 checksum
77B0EE6CB03EA5E9181892D741B4E85B

About this manual

The IRS2183 and IRS21834 are high‑voltage, high‑speed power MOSFET and IGBT drivers featuring a floating channel for bootstrap operation, a supply range of 10 V‑20 V, and robust protection against negative transients. They support up to 600 V on the high‑side floating channel and provide source/sink currents of 1.4 A and 1.8 A respectively.

The document includes detailed absolute maximum ratings, recommended operating conditions, static and dynamic electrical characteristics, functional block diagrams, pin assignments, package options (8‑lead PDIP, 8‑lead SOIC, 14‑lead PDIP, 14‑lead SOIC), and mechanical dimensions for tape‑and‑reel handling.

What's inside

  • Features
  • Description
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • Static Electrical Characteristics
  • Dynamic Electrical Characteristics
  • Functional Block Diagram
  • Pin Assignment
  • Package Information
  • Mechanical Dimensions

Specifications

Maximum high‑side floating absolute voltage620 V
Output source/sink current capability1.4 A (source) / 1.8 A (sink)
Gate‑drive supply voltage range10 V – 20 V
Thermal resistance (RthJA) for 8‑lead SOIC200 °C/W
Ambient temperature operating range-40 °C to 125 °C

Frequently asked questions

What is the maximum voltage the high‑side floating channel can handle?

The high‑side floating channel can handle up to 620 V.

What gate‑drive supply voltage range is recommended?

The recommended gate‑drive supply voltage is 10 V to 20 V.

What are the output source and sink current capabilities?

The driver can source 1.4 A and sink 1.8 A.

What is the thermal resistance for the 8‑lead SOIC package?

The thermal resistance (RthJA) for the 8‑lead SOIC is 200 °C/W.
