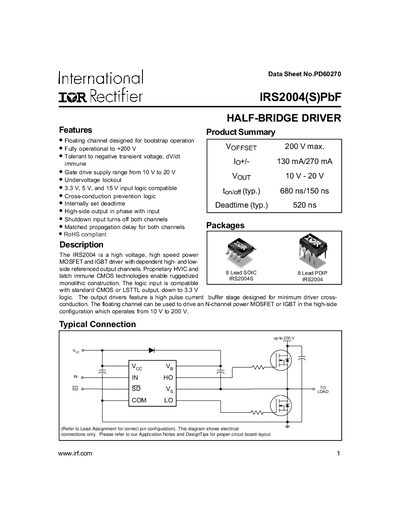

The IRS2004 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low- side referenced output channels.
The IRS2004 half‑bridge driver provides a floating channel for bootstrap operation, a gate‑drive supply range of 10 V to 20 V, and built‑in undervoltage lockout and cross‑conduction prevention. It accepts 3.3 V, 5 V, and 15 V logic inputs and offers matched propagation delay for both high‑side and low‑side channels.
Technical specifications include a maximum VOFFSET of 200 V, VOUT of 10‑20 V, typical turn‑on delay of 680 ns, turn‑off delay of 150 ns, and a typical dead‑time of 520 ns. The device is offered in 8‑lead SOIC and 8‑lead PDIP packages and is RoHS compliant.
| Floating channel | Designed for bootstrap operation |
|---|---|
| Gate‑drive supply range | 10 V to 20 V |
| Undervoltage lockout | Enabled |
| Logic input compatibility | 3.3 V, 5 V, 15 V |
| Shutdown input | Turns off both channels |
| Propagation delay matching | Matched for both channels |
| RoHS compliance | Yes |
| Maximum VOFFSET | 200 V |
| Output voltage (VOUT) | 10 V‑20 V |
| Turn‑on propagation delay (typ) | 680 ns |
| Turn‑off propagation delay (typ) | 150 ns |
| Dead‑time (typ) | 520 ns |
| Package options | 8‑lead SOIC, 8‑lead PDIP |
The driver operates with a gate‑drive supply range from 10 V to 20 V.
It accepts 3.3 V, 5 V, and 15 V input logic levels.
Typical turn‑on delay is 680 ns and turn‑off delay is 150 ns.
The device is offered in 8‑lead SOIC and 8‑lead PDIP packages.
