Light guide is made of PC light guide tube and SMD SIDELED is used as light source. The length of the light guide can be cut according to the requirement, and can be combined with round and square front panel. The installation method is press-in. The light guide can be pressed into the front panel hole.

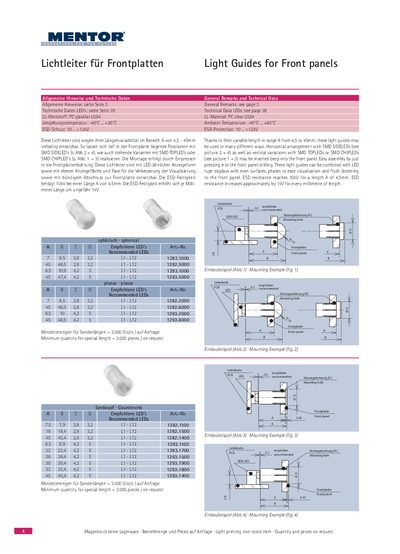

Mentor light guides are designed for front‑panel integration and offer a variable length (A) from 4.5 mm to 45 mm, allowing use with SMD SIDELED, TOPLED and CHIPLED devices. The guides are made of clear PC (UL94) and can be mounted by simply pressing them into a drilled front‑panel hole.
Technical data include an ambient temperature range of –40 °C to +85 °C, ESD protection of 10 kV to less than 12 kV (increasing roughly 1 kV per additional millimetre of length), and a minimum order quantity of 3 000 pieces for special lengths. Recommended LED part numbers and mounting examples are provided. This manual is written in German.
| Length range (A) | 4.5 mm … 45 mm |
|---|---|
| Ambient Temperature | -40 °C … +85 °C |
| ESD Protection | 10 kV … <12 kV |
| Minimum order quantity (special lengths) | 3 000 pieces |
The guides operate from –40 °C up to +85 °C.
ESD resistance is about 10 kV for a 4.5 mm length and increases roughly 1 kV for each additional millimetre.
They are installed by simply pressing the guide into the drilled front‑panel hole.
