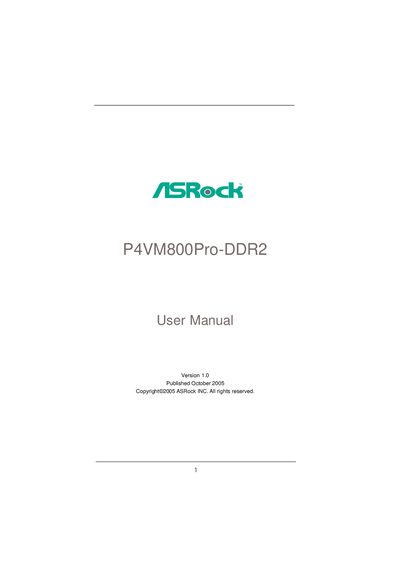

P4VM800Pro-DDR2 User Manual, Describe the features and characteristics of the products
This manual introduces the ASRock P4VM800Pro-DDR2 Micro ATX motherboard and guides users through hardware installation, including CPU, memory, expansion cards, and SATA devices. It also covers BIOS configuration, power‑on diagnostics, and the features of the ASRock I/O Plus™ rear panel.
Later sections describe the support CD contents, driver installation, operating‑system setup for Windows 98/ME/2000/XP, and safety cautions such as over‑clocking limits and RAID configuration. Technical specifications and connector pin‑outs are listed for quick reference.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 / Celeron D |
| Chipset | VIA P4M800Pro (Northbridge) / VIA VT8237R Plus (Southbridge) |
| Memory Slots | 2 DDRII DIMM slots, up to 2 GB DDRII‑533 |
| Expansion Slots | 3 PCI, 1 AGP (1.5 V 8X/4X), 1 AMR |
| SATA Connectors | 2 × 1.5 Gb/s, supports RAID 0/1/JBOD and Hot‑Plug |
| USB Ports | 6 rear USB 2.0 ports + 2 headers (4 additional ports) |
| LAN | VIA PHY VT6103, 10/100 Mbps Ethernet, Wake‑On‑LAN |
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron D processors.
The board supports up to 2 GB of DDRII‑533 memory across its two DIMM slots.
Yes, the two SATA connectors support RAID 0, RAID 1, JBOD and Hot‑Plug functions.
There are six USB 2.0 ports on the rear I/O panel, plus two internal headers for four additional ports.
