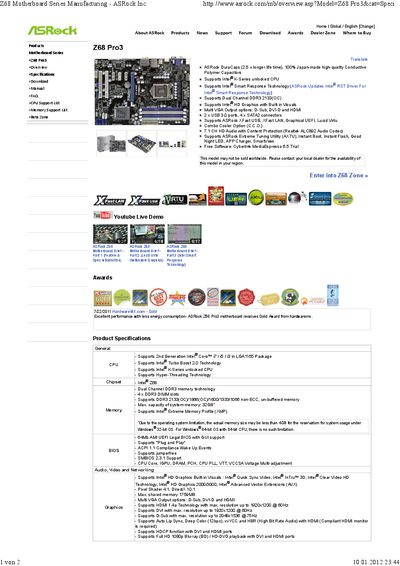

ASRock Z68 Pro3 Motherboard Brief, introduces the features and specifications of the motherboard.
The ASRock Z68 Pro3 is an ATX motherboard built on the Intel Z68 chipset, supporting 2nd‑generation Intel Core i7/i5/i3 processors and K‑Series unlocked CPUs. It offers four DDR3 DIMM slots for up to 32 GB of system memory and includes a range of integrated graphics and audio capabilities.
Connectivity includes two USB 3.0 ports, multiple SATA 3 and SATA 2 connectors with RAID support, a Gigabit LAN controller, and a variety of video outputs (HDMI, DVI‑D, D‑Sub). Additional features such as ASRock’s XFast USB, Lucid Virtu, and a solid‑capacitor design provide enhanced performance and reliability.
| Supported CPU | 2nd Generation Intel Core i7 (LGA1155) |
|---|---|
| Chipset | Intel Z68 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| USB 3.0 Ports | 2 ports |
| SATA Connectors | 2 SATA3 (6 Gb/s) and 4 SATA2 (3 Gb/s) |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s |
| Audio Codec | Realtek ALC892 |
| Graphics Support | Intel HD Graphics with Quick Sync, 3D, HD video |
| Form Factor | ATX (12.0" x 8.3") |
It supports 2nd‑generation Intel Core i7, i5, i3 processors in the LGA1155 package, including K‑Series unlocked CPUs.
The motherboard provides two USB 3.0 ports.
It can accommodate up to 32 GB of DDR3 memory.
A Gigabit Ethernet controller supporting 10/100/1000 Mb/s is included.
