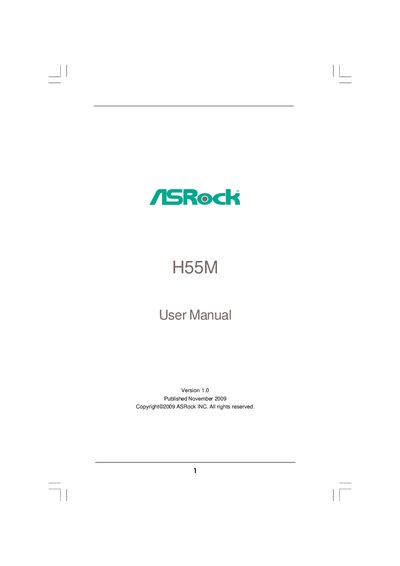

ASRock H55M User Manual

H55M User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 58
File format: PDF
File size: 641 KB
Published: 04 May, 2012
Updated: 30 September, 2023
Model: H55M
MD5 checksum: D45F68057D4C327CC8011736088C9452
PDF: ASRock H55M User Manual PDF

About this manual

This manual covers the package contents, hardware installation steps, BIOS configuration, and software support for the ASRock H55M Micro ATX motherboard. It includes detailed instructions for CPU, memory, expansion slots, and peripheral connections, as well as guidance on overclocking and power management.

The document also describes the supported operating systems, driver installation, and the contents of the Support CD, along with safety warnings and regulatory notices.

What's inside

Package Contents
Specifications
CPU Installation
Memory Modules
Expansion Slots
BIOS Setup Utility
Operating System Installation
Support CD Information
Overclocking Technology

Specifications

Form Factor	Micro ATX (9.6-in x 8.8-in)
CPU Support	Intel Core i7/i5/i3 and Pentium G6950 (LGA1156)
Chipset	Intel H55
SATA Ports	4 SATAII 3.0 Gb/s connectors
Graphics Support	Intel GMA HD, HDMI 1.3a up to 1920×1200

Frequently asked questions

What operating systems are supported by the ASRock H55M motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, and Windows XP/XP 64‑bit.

What is the form factor of the H55M motherboard?

It uses a Micro ATX form factor measuring 9.6 in × 8.8 in.

Does the H55M support CrossFirex technology?

Yes, it supports ATI CrossFirex and Quad CrossFirex.
