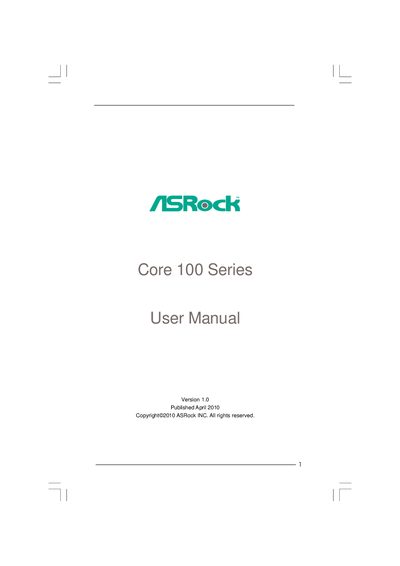

This manual is the user manual for Core 100 series products
This manual begins with safety guidelines for handling the Core 100 Series barebone system, including warnings about water, heat sources, ventilation, and ambient temperature limits. It also lists the package contents and detailed hardware specifications such as processor support, memory capacity, storage options, and connectivity.
Later sections cover BIOS setup utilities, operating system compatibility, driver and utility installation from the support CD, and contact information for technical support. The document also includes warranty notices, FCC compliance statements, and disposal instructions for electronic waste.
| Processor | Intel® Core™ i3 (Arrandale CPU) |
|---|---|
| Chipset | Mobile Intel® HM55 Express |
| Memory | DDR3 800/1066 MHz, 2 × SO‑DIMM slots, up to 8 GB |
| Graphics | Intel® HD Graphics |
| Primary HDD | 2.5" HDD, support second 2.5" HDD |
| Optical Drive | DVD Super Multi (Core 100 / Core 100HT) |
| Blu‑ray Drive | BD Combo (Core 100HT‑BD) |
| Audio | 7.0‑channel HD Audio with THX TruStudio Pro™ |
| LAN | Gigabit Ethernet |
| Wireless | 802.11b/g/n Wi‑Fi (Core 100HT / Core 100HT‑BD) |
| Power Adapter | 90 W / 19 V |
| Dimensions | 195 mm (W) × 70 mm (H) × 186 mm (L) |
Do not use the system near water or a heated source, place it on a stable surface, keep ventilation openings clear, and operate it within an ambient temperature range of 0 °C to 40 °C.
The system supports Microsoft Windows 7, Windows 7 64‑bit, Windows Vista, Windows Vista 64‑bit, Windows XP, and Windows XP 64‑bit.
Press the appropriate key during boot to enter the BIOS Setup Utility, where you can navigate menus, change settings, and use function keys such as F9 to load defaults.
