The ALiveNF7G-GLAN motherboard supports Socket AM2+ / AM2 processors, supports AM3 processors, supports dual-channel DDR2 1066 memory, and has an integrated NVIDIA® GeForce7 Series (NV44) graphics chip that supports Full HD 1080p Blu-ray (BD) / HD-DVD playback.

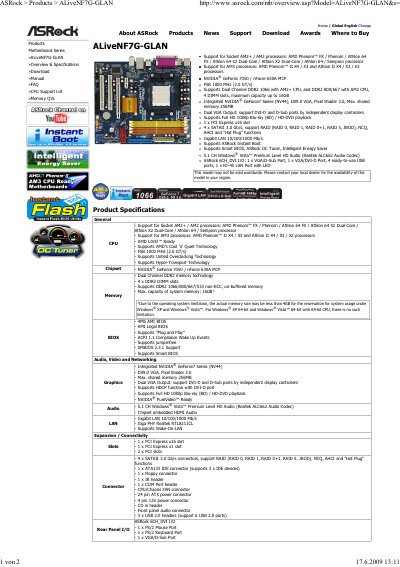

This guide covers the ASRock ALiveNF7G-GLAN Micro ATX motherboard, detailing its supported CPUs, memory options, chipset, and integrated graphics. It also includes information on BIOS features, I/O ports, and accessories that come with the product.
Key highlights include support for AM2+/AM2 and AM3 AMD processors, dual‑channel DDR2 memory up to 16 GB, an integrated NVIDIA GeForce7 graphics core with dual VGA/DVI outputs, Gigabit LAN, and a range of expansion slots such as PCI‑Express x16, x1 and PCI. The manual also outlines RAID‑capable SATAII ports, hardware monitoring features, and overclocking cautions.
| Chipset | NVIDIA GeForce 7050 / nForce 630A MCP |
|---|---|
| Front‑Side Bus | 1000 MHz (2.0 GT/s) |
| Integrated graphics | NVIDIA GeForce7 Series (NV44), DX9.0, Pixel Shader 3.0, 256 MB shared memory |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s |
| Audio | 5.1‑channel Windows Vista Premium HD Audio (Realtek ALC662) |
| Form factor | Micro ATX (9.6" x 8.2") |
| Expansion slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| SATA ports and RAID | 4 × SATAII 3.0 Gb/s, RAID 0/1/0+1/5/JBOD, NCQ, AHCI, Hot Plug |
The motherboard provides four SATAII 3.0 Gb/s connectors and supports RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD, along with NCQ, AHCI and Hot‑Plug functions.
It includes an integrated NVIDIA GeForce7 Series (NV44) GPU with DirectX 9.0, Pixel Shader 3.0, up to 256 MB of shared memory, and dual VGA outputs (DVI‑D and D‑Sub).
Yes, it includes a Gigabit LAN controller supporting 10/100/1000 Mb/s speeds.
