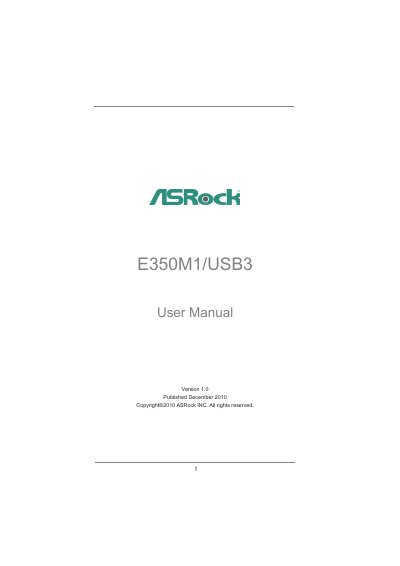

This manual introduces the characteristics of the E350M1/USB3 motherboard.
This manual covers everything needed to set up the ASRock E350M1/USB3 Mini‑ITX motherboard, including package contents, hardware installation, BIOS/UEFI configuration, and software support via the included support CD. It also details safety notices, FCC compliance, and special handling for the lithium battery.
The document lists the motherboard’s technical specifications, connector layout, and advanced features such as USB 3.0, SATA3 hot‑plug, integrated graphics, and various utilities (Instant Flash, AIWI, APP Charger, SmartView, XFast USB). Troubleshooting tips and a remote‑receiver installation guide are also provided.
| Form Factor | Mini‑ITX 6.7" x 6.7" (17.0 cm x 17.0 cm) |
|---|---|
| CPU | AMD Dual‑Core Zacate E350 APU |
| Chipset | AMD A50M |
| Memory | 2 DDR3 DIMM slots, up to 16 GB, DDR3‑1066/800 non‑ECC |
| Expansion Slot | 1 PCI‑Express 2.0 x16 (blue, x4 mode) |
| Graphics | Integrated AMD Radeon HD 6310 (DX11, up to 1920×1200) |
| Audio | Realtek ALC892 7.1‑channel HD Audio codec |
| LAN | Gigabit Ethernet (Realtek RTL8111E) |
| SATA3 | 4 × SATA3 6 Gb/s connectors, NCQ, AHCI, Hot Plug |
| USB 3.0 | 2 × USB 3.0 ports (up to 5 Gb/s) |
| BIOS | 32 Mb AMI UEFI BIOS |
It supports the AMD Dual‑Core Zacate E350 APU.
The board includes two USB 3.0 ports.
