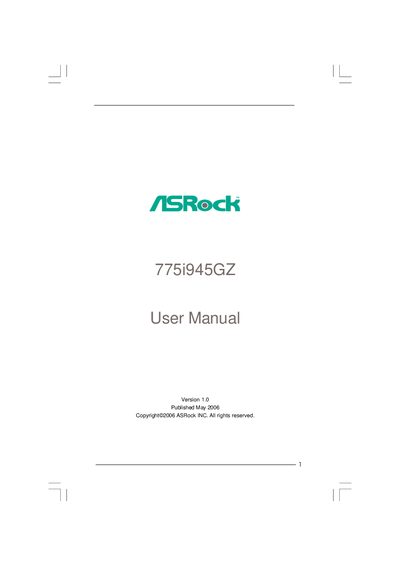

This document is the user manual for ASRock INC.'s 11111 775i945GZ, describing the features and characteristics of the product.
This manual guides users through the installation of the ASRock 775i945GZ motherboard, including CPU, memory, storage, and peripheral connections, as well as BIOS configuration and software support. It also includes safety cautions and troubleshooting tips.
Detailed hardware specifications, connector layouts, and supported operating systems are listed, along with instructions for using the supplied support CD and accessing driver updates from the ASRock website.
| Form Factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Dual Core Pentium D, Pentium 4, Celeron D, Core 2 Duo |
| FSB Speed | 800/533 MHz |
| Chipset | Northbridge Intel 945GZ, Southbridge Intel ICH7 |
| Memory | 2 × DDRII DIMM slots, DDRII‑533, max 2 GB |
| Expansion Slots | 3 × PCI, 1 × AGI Express (PCIe x4), 1 × HDMR |
| Graphics | Intel GMA 950, max shared memory 192 MB |
| Audio | Realtek ALC888 7.1‑channel codec |
| LAN | Realtek PCI LAN 8101L, 10/100 Mbps, Wake‑On‑LAN |
| SATA Connectors | 4 × SATAII 3.0 Gb/s (no RAID, no hot‑plug) |
| USB Ports | 4 × USB 2.0 ports |
It supports Microsoft Windows 2000, XP, XP 64‑bit, and Vista.
The board provides four SATAII 3.0 Gb/s connectors.
It is a Micro ATX board measuring 9.6 in × 8.6 in.
Vista drivers will be posted on the ASRock website when they become available.
