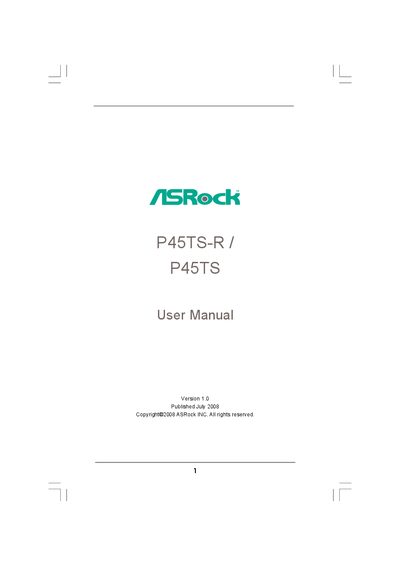

This is a user manual for P45TS-R / P45TS motherboard.
This manual provides detailed information for the ASRock P45TS-R and P45TS motherboards, including package contents, hardware specifications, and supported operating systems. It guides users through installation steps, BIOS configuration, and the use of the support CD utilities.
The document also describes rear panel I/O, connector layouts, RAID capabilities (P45TS‑R only), and safety notices. Technical support resources and contact information are included at the end of the manual.
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| CPU Socket | LGA 775 |
| Northbridge Chipset | Intel® P45 |
| Southbridge Chipset (P45TS‑R) | Intel® ICH10R |
| Memory Slots (DDR3) | 2 x DDR3 DIMM |
| Memory Slots (DDR2) | 4 x DDR2 DIMM |
| Maximum Memory (DDR3) | 4 GB |
| Maximum Memory (DDR2) | 16 GB |
| PCI Express Slots | 1 × PCIe 2.0 x16, 3 × PCIe x1 |
| Audio Codec (P45TS‑R) | ALC890 |
| Audio Codec (P45TS) | ALC888 |
| LAN Controller | Realtek RTL8111B/RTL8111C Gigabit |
| SATA Connectors | 6 × SATAII 3.0 Gb/s (RAID supported on P45TS‑R) |
| BIOS | 8 Mb AMI BIOS |
The motherboard provides six USB 2.0 ports on the rear I/O panel.
Yes, the P45TS‑R supports RAID 0, 1, 10, and 5 on its SATAII connectors.
It uses an LGA 775 socket compatible with Intel Core 2, Pentium Dual Core, Celeron Dual Core, and other LGA 775 processors.
Insert the CD and, if autorun is enabled, the main menu appears; otherwise run ASSETUP.EXE from the BIN folder.
