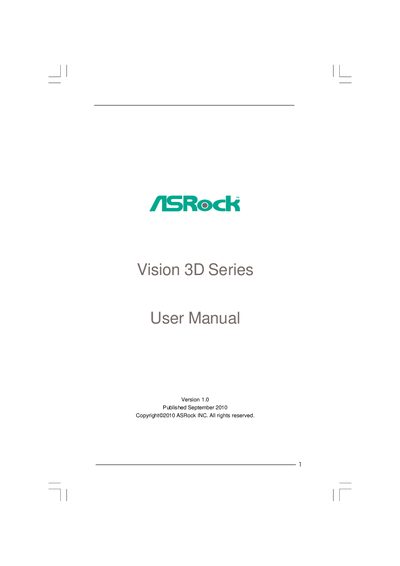

Vision 3D Series User Manual,provides instructions for using the Vision 3D Series motherboard
This manual introduces the ASRock Vision 3D Series barebone system, covering package contents, hardware specifications, and installation steps. Safety instructions, handling cautions, and disposal guidelines are included to ensure proper use.
Later sections guide you through BIOS configuration, driver installation, and software support, including operating system compatibility and how to use the support CD. Contact information and warranty notes are also provided.
| Processor Support | Intel® Core™ i3/i5/i7 Mobile Processor |
|---|---|
| Chipset | Mobile Intel® HM55 Express |
| Memory Support | DDR3 1066 MHz, 2 × SO‑DIMM slots, up to 8 GB |
| Graphics | NVIDIA® GeForce GT425M, NVIDIA® 3D Vision capable |
| Power Adapter | 90 W / 19 V |
| Front USB Ports | 2 × USB 3.0, 1 × MIC, 1 × Headphone, 4‑in‑1 Card reader |
| Rear I/O | 1 × HDMI, 1 × DVI‑I (Dual‑Link), 5 × USB 2.0, 1 × eSATA II, 1 × USB 3.0, 1 × S/PDIF, 1 × Gigabit LAN, Wi‑Fi 802.11b/g/n |
The optical drive contains a CLASS 1 laser product.
The system supports Windows 7, Windows 7 64‑bit, Windows Vista, Windows Vista 64‑bit, Windows XP and Windows XP 64‑bit.
It uses a 90 W, 19 V AC/DC adapter.
The front USB 3.0 ports support hot‑plug, but the rear USB 3.0 port does not support hot‑plug or legacy functions.
