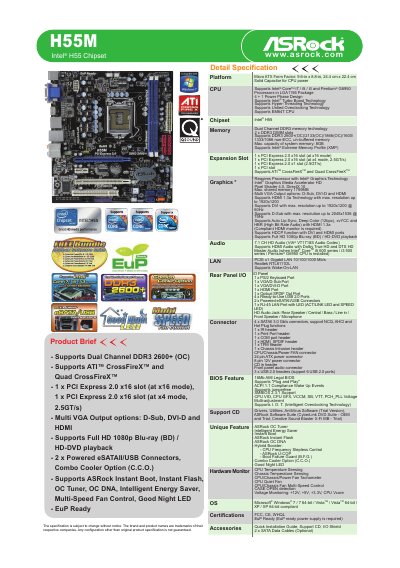

The ASRock H55M-GLAN is a Micro‑ATX motherboard built on the Intel® H55 chipset, supporting Intel® Core i7/i5/i3 and Pentium® G6950 processors in an LGA1156 package. It offers dual‑channel DDR3 memory up to 8 GB, multiple graphics outputs (D‑Sub, DVI‑D, HDMI) and a range of connectivity options including Gigabit LAN, USB 2.0, eSATA, and SATA‑II ports.
Key features include ASRock Instant Flash, Instant Boot, OC DNA overclocking tools, a solid‑state capacitor design, and extensive hardware monitoring via the VIA VT1718S audio codec and Realtek RTL8111DL LAN controller. The board also supports TPM for enhanced security and a Combo Cooler Option for flexible CPU cooling solutions. This manual is written in Chinese.
| Chipset | Intel® H55 |
|---|---|
| CPU Socket | LGA1156 |
| Maximum Memory Capacity | 8 GB |
| Form Factor | Micro ATX (9.6" x 8.8") |
| Expansion Slots | 1 × PCIe 2.0 x16 (x16), 1 × PCIe 2.0 x16 (x4), 1 × PCIe 2.0 x1, 1 × PCI |
| Graphics Outputs | D‑Sub, DVI‑D, HDMI |
| Audio Codec | VIA VT1718S (7.1‑channel HD Audio) |
| LAN Controller | Realtek RTL8111DL Gigabit Ethernet |
| SATA Ports | 4 × SATAII 3.0 Gb/s connectors |
It uses the LGA1156 socket for Intel® Core i7/i5/i3 and Pentium® G6950 processors.
Yes, it supports HDMI audio with Dolby True HD and DTS HD Master Audio when a compatible Intel CPU is installed.
A Realtek RTL8111DL Gigabit Ethernet controller provides 10/100/1000 Mb/s networking.
