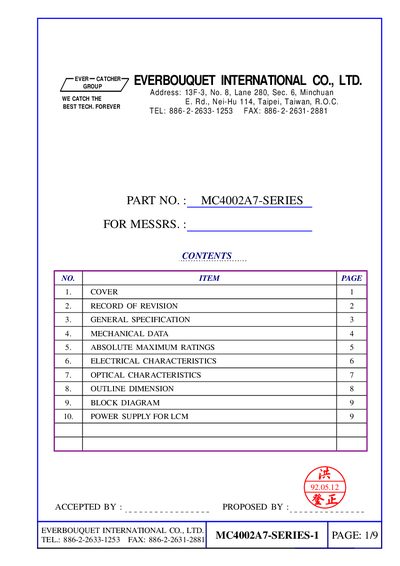

This document is the specification of MC4002A7-SERIES, which details the characteristics and parameters of the product
The MC4002A7 Series is an LCD display module offered by Everbouquet. It includes various LCD types (STN, FSTN, etc.) with LED backlight options and multiple viewing angles.
The datasheet lists general specifications, mechanical dimensions, absolute maximum ratings, electrical and optical characteristics, outline dimensions, block diagram, and power‑supply recommendations for the module.
| Backlight Type | LED |
|---|---|
| Backlight Color Options | Yellow‑Green, Amber, Blue, Pure‑Green, Orange, Red, White |
| Operating Temperature Range | -20 °C to 70 °C |
| Maximum Humidity | 90 % RH at 50 °C (80 % RH at 60 °C) |
The module can operate from –20 °C up to 70 °C.
It uses an LED backlight.
Maximum humidity is 90 % RH at 50 °C (or 80 % RH at 60 °C).
