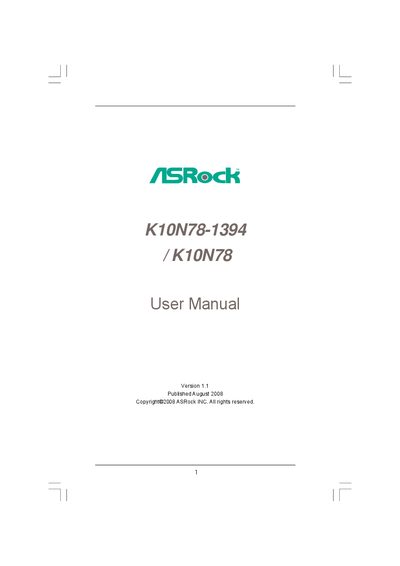

ASRock K10N78-1394 / K10N78 Motherboard User Manual

K10N78-1394 / K10N78 User Manual, introduces the features and characteristics of the products

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 1.7 MB
Published: 04 May, 2012
Updated: 30 September, 2023
Models: K10N78-1394, K10N78
MD5 checksum: EA97D022CA658D493D86C59CC623C666
PDF: ASRock K10N78-1394 / K10N78 Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K10N78-1394 and K10N78 motherboards, detailing package contents, specifications, and hardware layout. It guides users through CPU, memory, and expansion slot installation, as well as I/O panel connections and SATA/eSATA setup.

Later sections cover BIOS configuration, software support, driver installation, and operating system compatibility, along with troubleshooting tips and safety cautions for overclocking and component handling.

What's inside

Package Contents
Specifications
Motherboard Layout
I/O Panel
CPU Installation
Memory Module Installation
Expansion Slots
BIOS Setup Utility
Software Support

Specifications

Form Factor	ATX (12.0‑in x 8.4‑in)
CPU Socket	Socket AM2+ / AM2
Supported CPUs	AMD Phenom, FX, Athlon 64, Athlon 64 X2, Sempron
Maximum Memory	8 GB DDR2
Memory Slots	4 × DDR2 DIMM
Audio Codec	Realtek ALC888, 7.1‑channel HD Audio

Frequently asked questions

Which Windows operating systems are supported by this motherboard?

The motherboard supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.

Does the motherboard include integrated graphics and what are its capabilities?

Yes, it has an integrated NVIDIA GeForce 8 Series GPU with DirectX 10 support, Pixel Shader 4.0, and up to 512 MB of shared memory.

Download PDF (1.7 MB)
