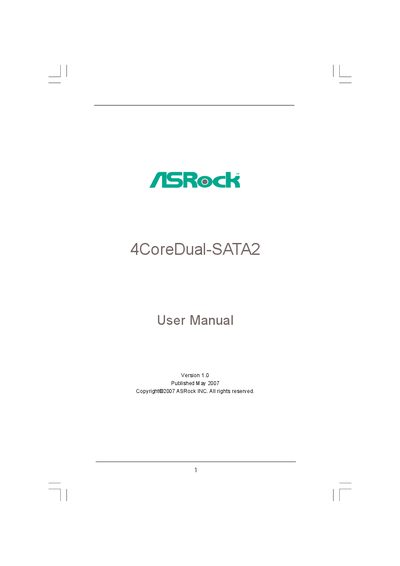

4CoreDual-SATA2 User Manual, introduces the features and characteristics of 4CoreDual-SATA2
This manual introduces the ASRock 4CoreDual-SATA2 ATX motherboard, detailing its specifications, package contents, and hardware layout. It guides users through CPU, memory, and peripheral installation, as well as BIOS configuration and overclocking precautions.
Later sections cover operating‑system installation, driver and utility installation from the Support CD, and troubleshooting tips. The document also lists connector pin‑outs, expansion slot options, and safety warnings for overclocking and battery disposal.
| Form Factor | ATX (12.0‑in x 9.6‑in, 30.5 cm x 24.4 cm) |
|---|---|
| CPU Socket | LGA775 supporting Intel Core2, Core2 Duo, Pentium XE/D/Dual Core/4, Celeron/D |
| Front‑Side Bus (FSB) | 1066/800/533 MHz |
| Northbridge Chipset | VIA® PT880 Pro/PT880 Ultra |
| Southbridge Chipset | VIA® VT8237S |
| Memory Support | Dual‑channel DDR/DDRII, up to 2 GB per type |
| Audio Codec | ALC888 (7.1 CH Windows Vista Premium Level HD Audio) |
| LAN | VIA® PHY VT6103, 10/100 Mbps Ethernet with Wake‑On‑LAN |
| Rear USB Ports | 4 USB 2.0 ports |
| SATA Connectors | 2 Serial ATAII 3.0 Gb/s connectors, support RAID 0/1/JBOD and Hot Plug |
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
The rear panel provides four USB 2.0 ports.
Yes, the SATAII connectors support RAID 0, RAID 1, and JBOD.
It uses the ATX form factor measuring 12.0 in × 9.6 in (30.5 cm × 24.4 cm).
