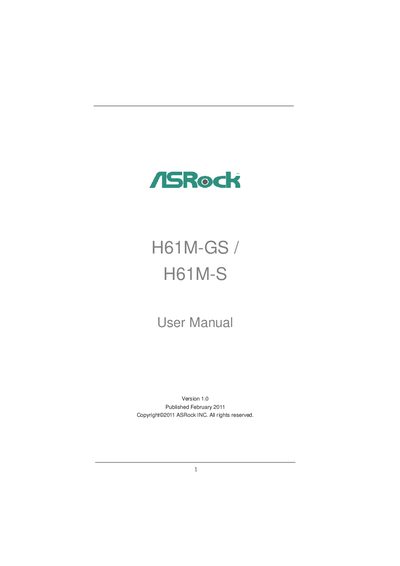

ASRock H61M-GS / H61M-S User Manual, this manual includes product features, use methods and other information
This manual introduces the ASRock H61M-GS and H61M-S Micro ATX motherboards, lists package contents, and details technical specifications such as CPU support, memory capacity, and LAN interfaces. It also explains the installation steps for CPU, memory, expansion cards, and storage devices.
Later sections cover the UEFI BIOS setup utility, hardware health monitoring, and software support, including driver installation from the supplied Support CD and instructions for installing Windows on large hard drives using UEFI mode.
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU Support | 2nd Gen Intel® Core™ i7 / i5 / i3 LGA1155 |
| Chipset | Intel® H64 |
| Memory Slots | 2 x DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| LAN (GS model) | Atheros® PCIE x1 Gigabit LAN AR8151 (10/100/1000 Mb/s) |
| LAN (S model) | Atheros® PCIEx1 LAN AR8152 (10/100 Mb/s) |
The motherboard uses a UEFI BIOS that supports Windows installation on drives over 2 TB; set AHCI mode in the UEFI Setup Utility, choose the UEFI boot option, and then install Windows 7 64‑bit or Vista 64‑bit.
Drivers and utilities are provided on the Support CD that comes with the motherboard, and additional files can be downloaded from the ASRock website.
Both models support up to 16 GB of system memory.
