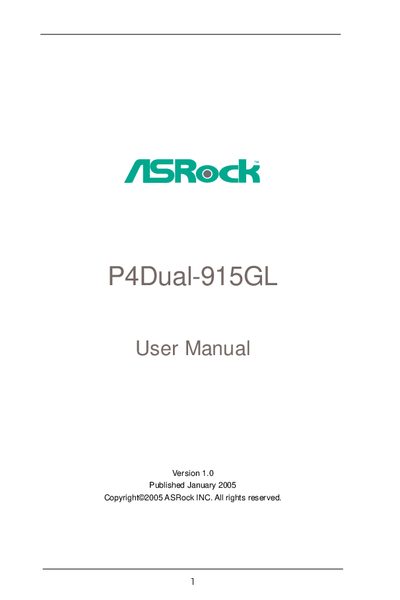

P4Dual-915GL User Manual, Introduce the features and characteristics of the products
The ASRock P4Dual-915GL Motherboard User Manual introduces the board, lists package contents, and details the technical specifications of this Micro ATX platform.
It guides users through CPU, memory, and storage installation, BIOS configuration, and includes support information for drivers, utilities, and compatible graphics cards.
| Form Factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU Socket | Socket 478, supports Intel Pentium 4 / Celeron (Prescott, Northwood) |
| North Bridge Chipset | Intel 915GL |
| South Bridge | Intel ICH6 with SATA 1.5 Gb/s |
| SATA Ports | Supports up to 4 SATA devices at 1.5 Gb/s |
| IDE Interface | ATA 100 / Ultra DMA Mode 5, up to 2 devices |
| Audio | 7.1‑channel AC’97 audio |
| LAN | 10/100 Mbps Ethernet (802.3u) |
| USB Ports | 8 USB 2.0 ports (4 rear, 4 via headers) |
It supports Intel Pentium 4 and Celeron processors for Socket 478, including Prescott and Northwood models.
The board can connect up to four SATA devices, each operating at 1.5 Gb/s.
It provides 7.1‑channel AC’97 audio.
There are eight USB 2.0 ports – four on the rear panel and four via internal headers.
